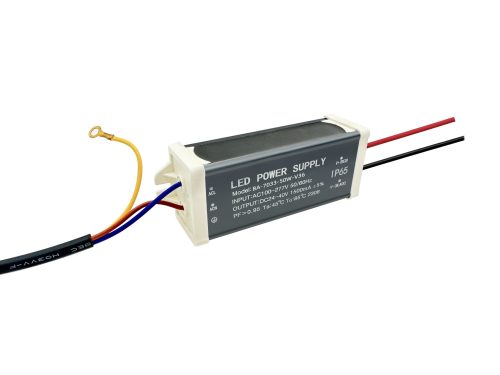

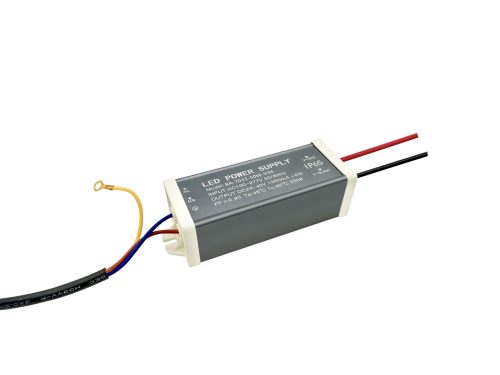

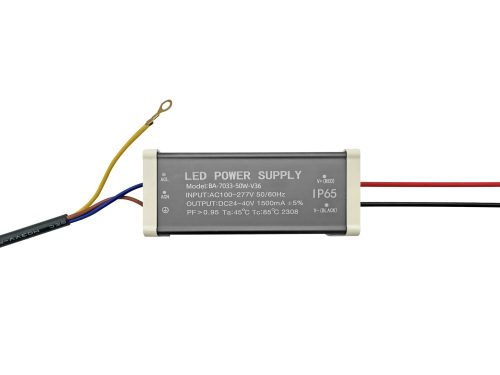

703 Series LED Driver 50 Watt

Features：

Rated input voltage range: 100~265Vac

Constant current output

Efficiency:88%/ High PF>0.95/ THD<10%

Protection:OVP/OCP /SCP /OTP

Working Temperture:-40℃ ~ 60℃

Lifetime of over 35,000 hours, 3 years warranty

50 watt LED Driver Isolated Constant Current

7033-50W 1.3-1.5A Isolated High P,SPD 4KV

Street Light Floodlight LED Outdoor Lighting Driver Power Supply

Compact shell design, high safety, fully potted with thermal silica gel to ensure heat dissipation and waterproof performance.

Product Details:

Output power: 50W

Output current: 1.3-1.5A (adjusted according to customer needs)

Input voltage: 100-265V

output voltage: 30-40V

Features:

The line has over current, over temperature, overload, short circuit and open circuit protection, safe and reliable

Using professional constant current chip, stable operation and 10000H service life

Professional lightning protection series solutions, full voltage design, mature solutions, already in mass production.

Suitable for LED street lights, floodlights and other outdoor lighting power supplies

Current and voltage parameters can be customized according to customer needs

Provide 3 years warranty

Environmental requirements:

(1) Operating temperature: -40°C TO +80°C

(2) Storage temperature: -25°C TO +70°C

(3) Working humidity: 35~85% RH. (in non-condensing state)

(4) Storage humidity: 5~95% RH. (without solidification)
