1.High performance design with 3030 LED source
2.Lens optional, Uniform light distribution apply to different outdoor project
3.Variety beam angles 30°,60°,90°,70*145°,90*120°,80*150° vertical.
4.IP66,apply for different design of light housing: street light, garden lamp, high mast light, tunnel light, high bay light, canopy light, gas station light, flood light, etc.

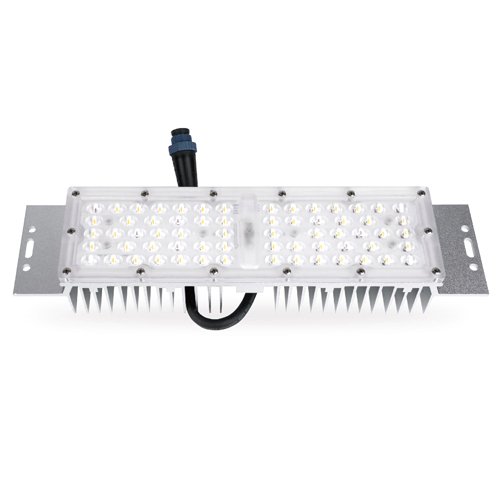

| GH64LH/S系列Series | 303 Screw Type Seires -Thick | 303 Screw Type Seires-ECO Thick |
| Applicable powet | 30-70W | 30-60W |
| Luminous efficacy | 100lm/w -150lm/w | 100lm/w -150lm/w |
| input Voltage | 30-70V DC | 30-70V DC |
| Colour Temperature | 2200k 3000k 4000k 5000k 5700k 6500k | 2200k 3000k 4000k 5000k 5700k 6500k |
| Color Rendering | RA70 RA80 | RA70 RA80 |
| Led Chip | EMC3030/2525 | EMC3030/2525 |
| IP Rating | IP68 | IP68 |
| Module Dimension | 298X70X47mm | 298X70X38mm |
| Radiator Temperature Rise | △ T 33K@60W | △ T 32K@50W |
| Module Weight | 650g | 485g |
