1. Struction: Air-convection heat sink design improves heat radiation, compadct structure contributes to lighter weight, stronger body and nice appearance.
2. LED & OPTICS: LED manufactured by ourselves make sure high quality, low heat radiation,low light depreciation, high efficiency and long life which contributes 50,000 hours lifespan of lumen LED street light. Pure White & warm white is available.
3. Precise optic lens in high intensity PC material provides high uniformity and optimal luminaire installation spacing,the optical system optimizes the light distribution,eliminates the waste of light and increases the effective light distribution.
4. Electronics: water proof and universal driver is available in 85-265V, 50/60HZ, power factor>95%
5. Warranty: 5 years, 50,000hrs lifetime.

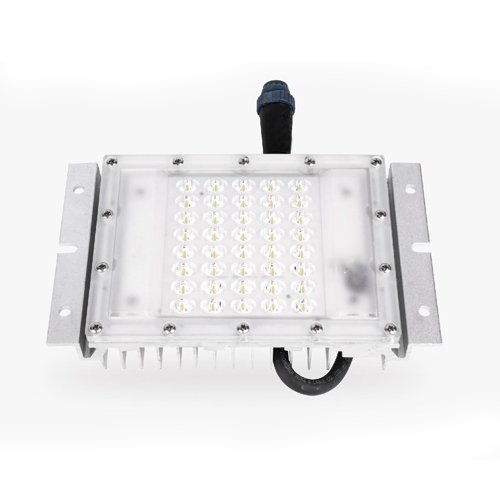

| JX40LH系列Series | 3030 Small block DC Seires | 3030 Small block AC Seires |
| Applicable powet | 20-40W | 20-40W |
| Luminous efficacy | 100lm/w-130lm/w | 100lm/w-130lm/w |
| input Voltage | 30-50V DC | 220V DC |
| Colour Temperature | 2200k 3000k 4000k 5000k 5700k 6500k | 2200k 3000k 4000k 5000k 5700k 6500k |
| Color Rendering | RA70 RA80 | RA70 RA80 |
| Led Chip | EMC3030/2525 | AMC3030/2525 |
| IP Rating | IP68 | IP68 |
| Module Dimension | 168X100X35mm | 168X100X35mm |
| Radiator Temperature Rise | △ T 32K@40W | △ T 32K@40W |
| Module Weight | 465g | 465g |
