1.Waterproof performance, install waterproof nuts and glue at the outlet, install O-shaped waterproof silicone diagram at the lens
2.Heat dissipation performance, 1060 aluminum forging integrated molding, surface sand anodized, fin fin heat dissipation teeth
3.Lamp bead performance, 3030 patch lamp bead, Ra70 Automatic placement machine, reflow welding process
4.Accessory materials, stainless steel screws, copper waterproof nut rubber wire, 1.5 thick exposure process aluminum substrate

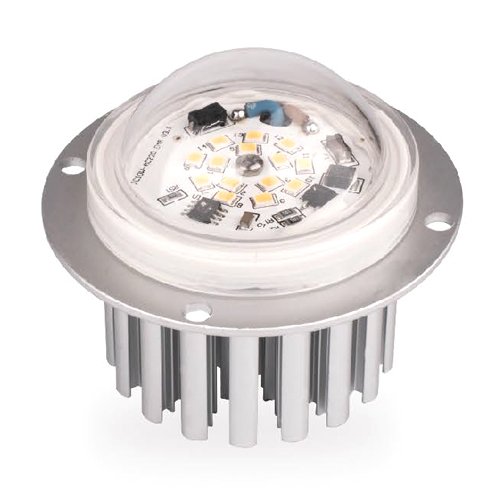

| JCYL10W系列 | Magnolia Lamp Seires -10w | Magnolia Lamp Seires -20w/30w |
| Applicable powet | 10-15W | 20-25W |
| Luminous efficacy | 100lm/w -140lm/w | 100lm/w -140lm/w |
| input Voltage | 30V DC / 220VAC | 30V DC / 220VAC |
| Colour Temperature | 2700k 3000k 4000k 5000k 5700k 6500k | 3000k 4000k 5000k 5700k 6500k |
| Color Rendering | RA70 RA80 | RA70 RA80 |
| Led Chip | EMC3030/2525/2835 | EMC3030/2525 |
| IP Rating | IP68 | IP68 |
| Module Dimension | ф76X25mm | ф100X65mm |
| Radiator Temperature Rise | △ T 42K@10W | △ T 42K@20W |
| Module Weight | 130g | 230g/245g |
