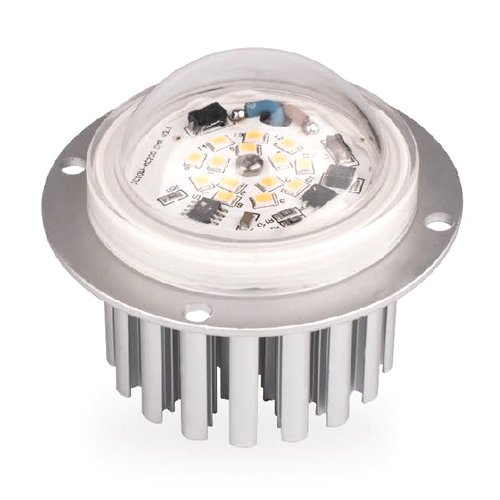

LED MODULE Magnolia Lamp Seires -60w

Power:50-60W
Lumen:100lm/w-140lm/w
Input Vol:36V/220V DC
RA70 RA80 EMC3030/2835
Size: Dia136*110mm
Beam Angle: 60°,160°
Availability:
Product Description

1.Waterproof performance, install waterproof nuts and glue at the outlet, install O-shaped waterproof silicone diagram at the lens


2.Heat dissipation performance, 1060 aluminum forging integrated molding, surface sand anodized, fin fin heat dissipation teeth


3.Lamp bead performance, 3030 patch lamp bead, Ra70 Automatic placement machine, reflow welding process


4.Accessory materials, stainless steel screws, copper waterproof nut rubber wire, 1.5 thick exposure process aluminum substrate



LED MODULE Magnolia Lamp Seires -60w1


JCYL60W系列 Magnolia Lamp Seires -60w
Applicable powet 50-60W
Luminous efficacy 100lm/w -140lm/w
input Voltage 36V DC / 220VAC
Colour Temperature 3000k 4000k 5000k 5700k 6500k
Color Rendering RA70 RA80
Led Chip EMC3030/2525/2835
IP Rating IP68
Module Dimension ф136X110mm
Radiator Temperature Rise △ T 42K@20W
Module Weight 605g
